Product Details
Application:

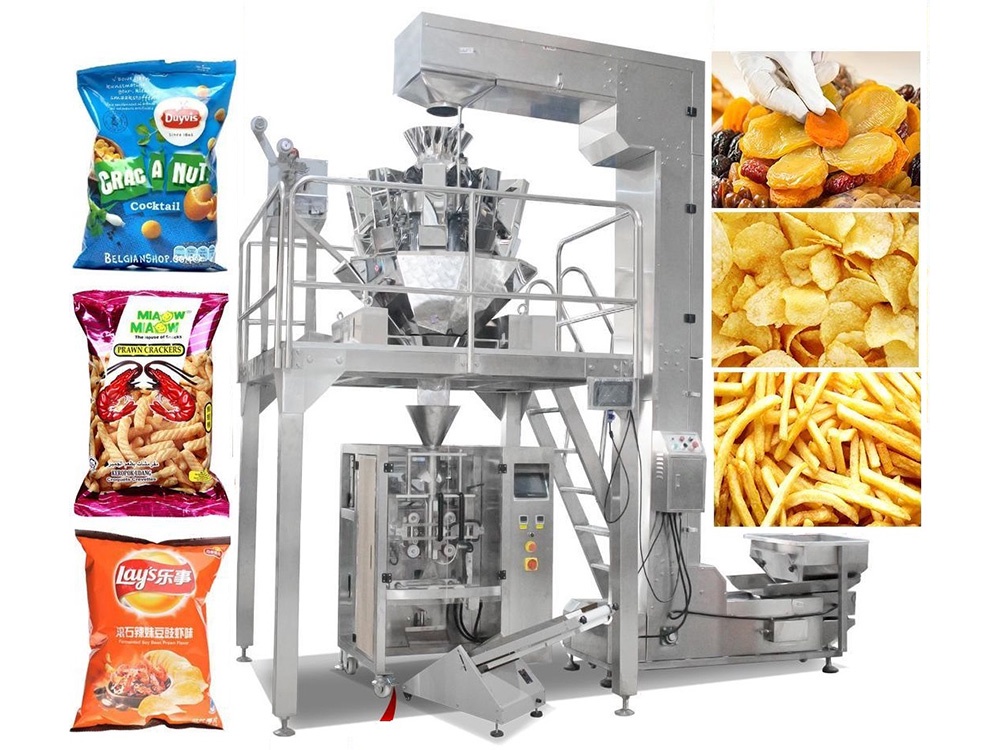

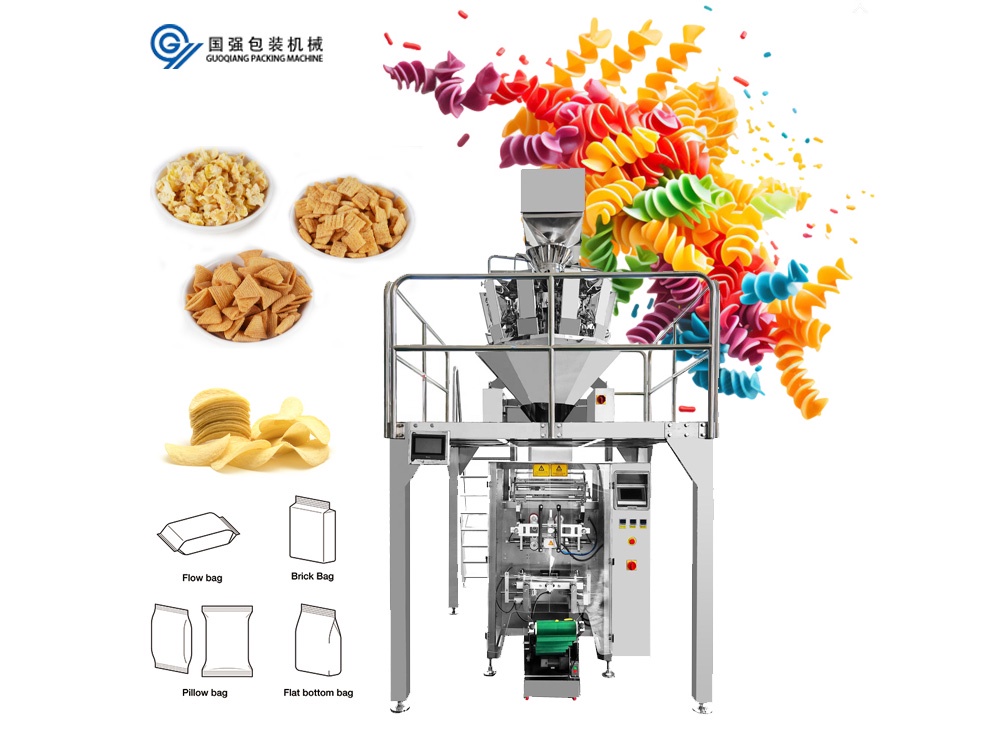

Suitable for the packing of bulk objects requiring high metering accuracy and fragility, such as puffed food, potato chips, potpourri, jelly, candy, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, etc.
Introduction of the machine.

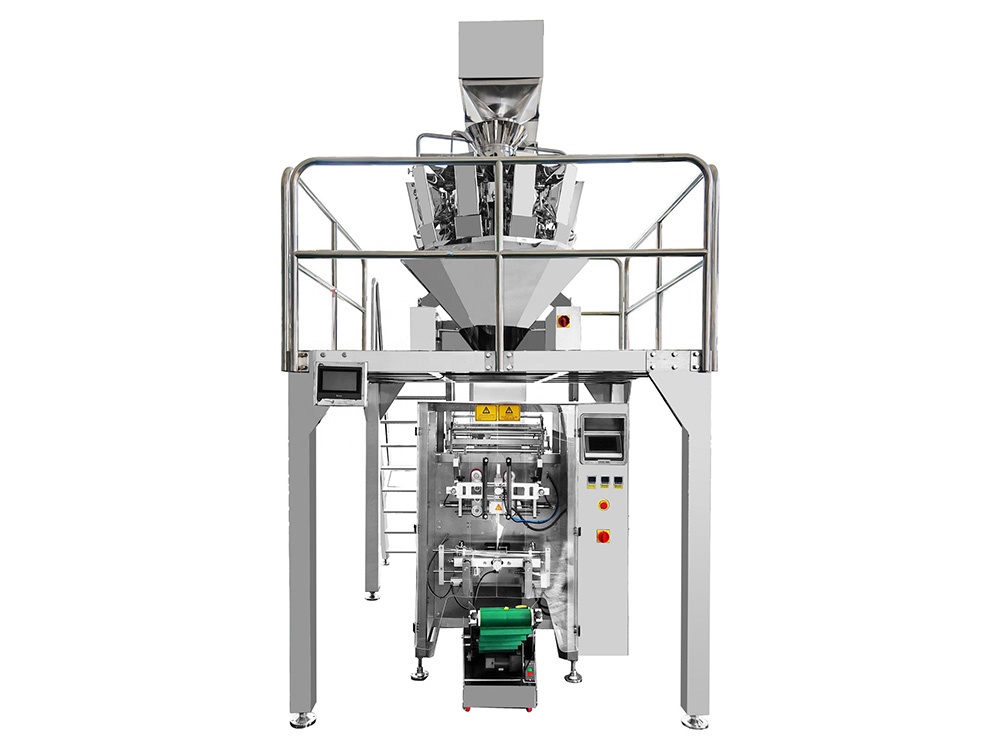

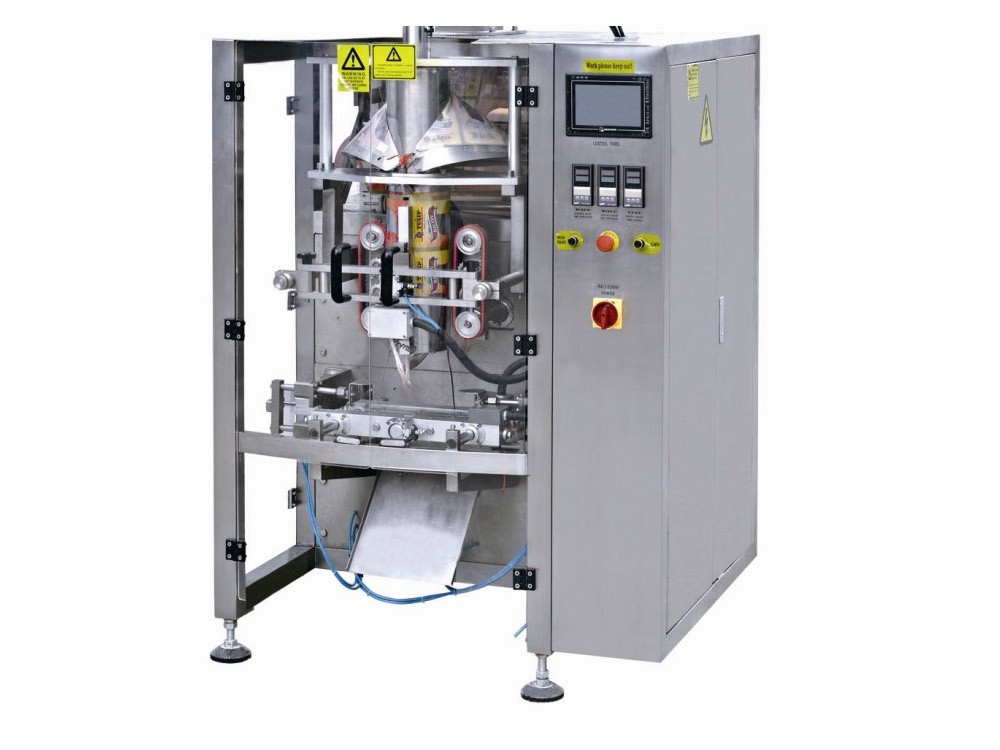

1. GQ-520 automatic vertical packing machine
* Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.
* High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.
* Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.
* Including automatic fault alarm display function, such as low temperature, no packing film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.
* The machine can automatically complete the whole packing process of metering, feeding, bag filling, date printing, and finished product output with the matching of the metering device.

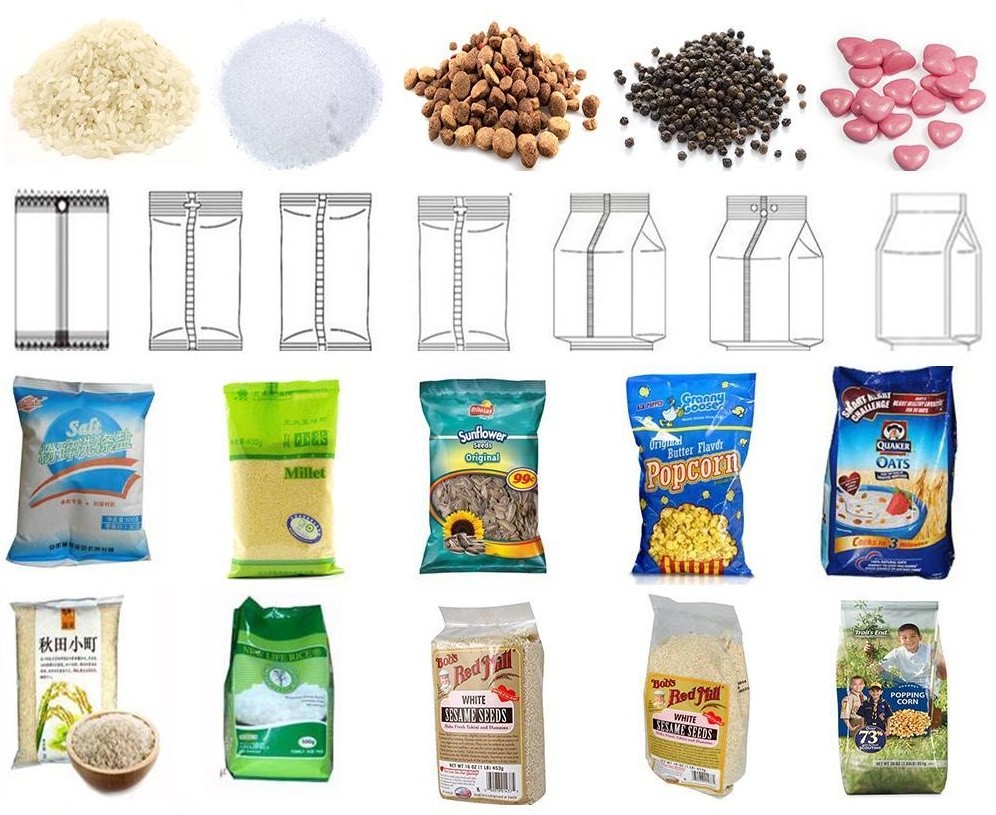

Bag Type:
Product Parameters
Whole set of technical parameters.
1. Packing speed: About 20-60 bags/min, depending on the quality of packing film and materials.
2. Packing size: Bag making width 100-250mm length 50-350mm. Changing different film widths need to change the shaper, length limited adjustable.
3. Bag-making form: Packing materials with rolled film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.
4. Whole set of power: About 3.8KW
5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packing machine production has been equipped with a good source of gas.
6. Overall height of the package: about 3.5 meters.

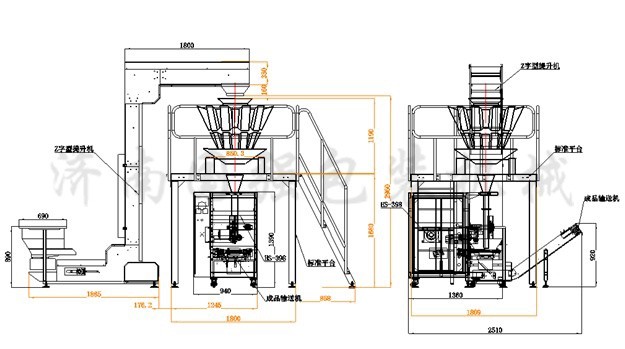

Technical parameters:
Product Configuration

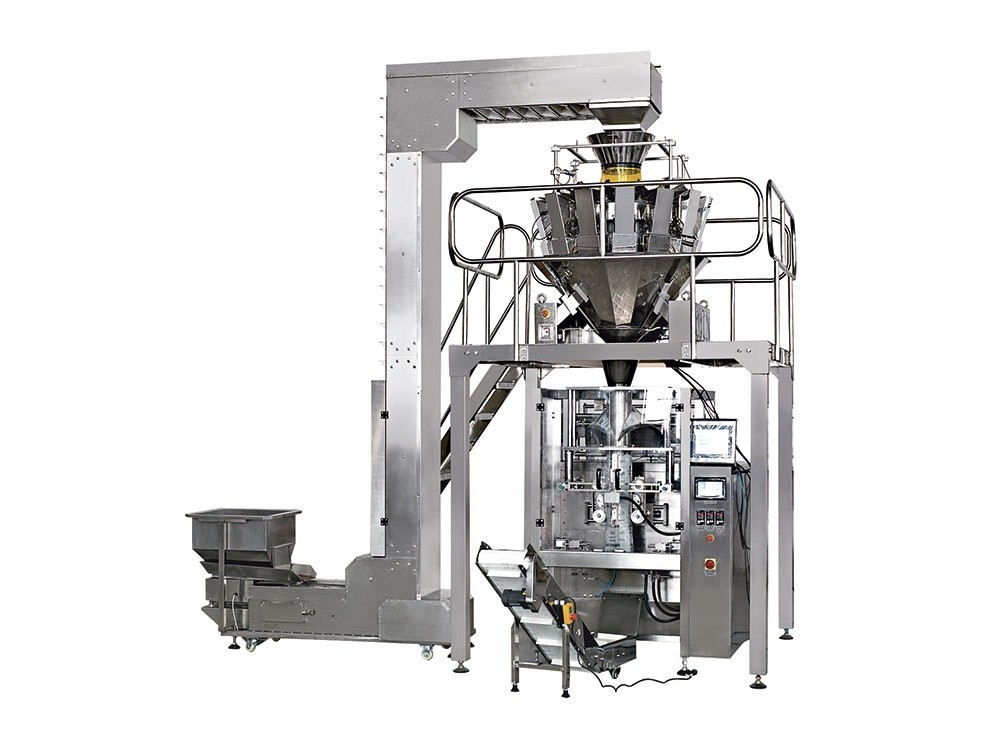

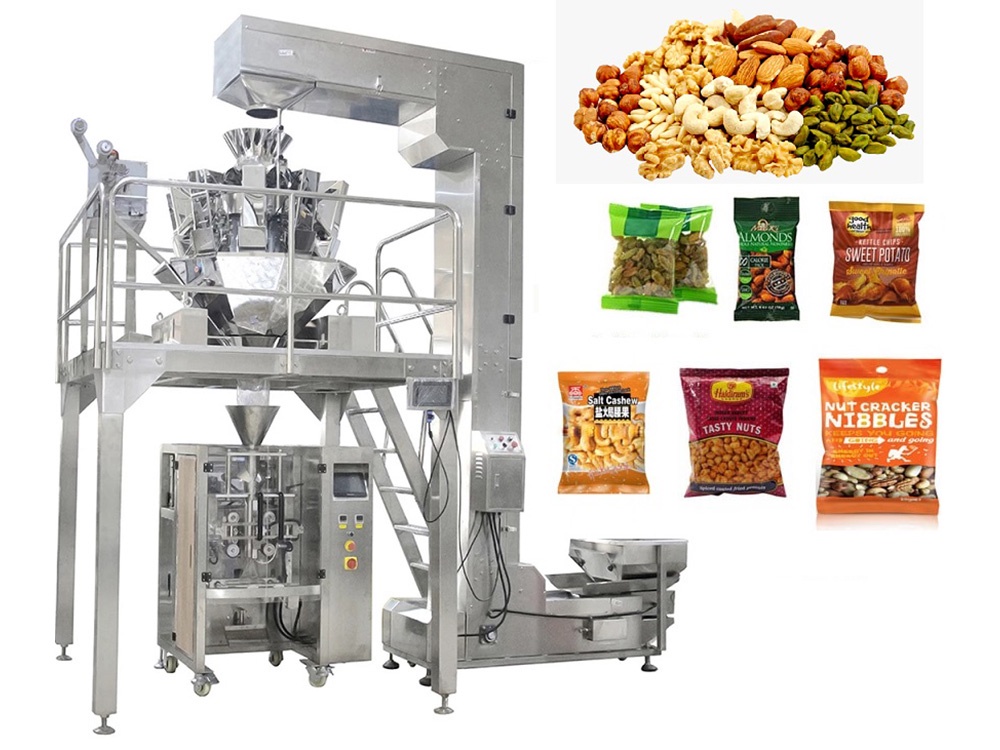

520 complete set Include five parts:
① GQ-520 Automatic Vertical Packing Machine
② 10-head Weigher
③ Z-type Conveyor (with vibration device)
④ Finished product conveyor
⑤ Weigher platform

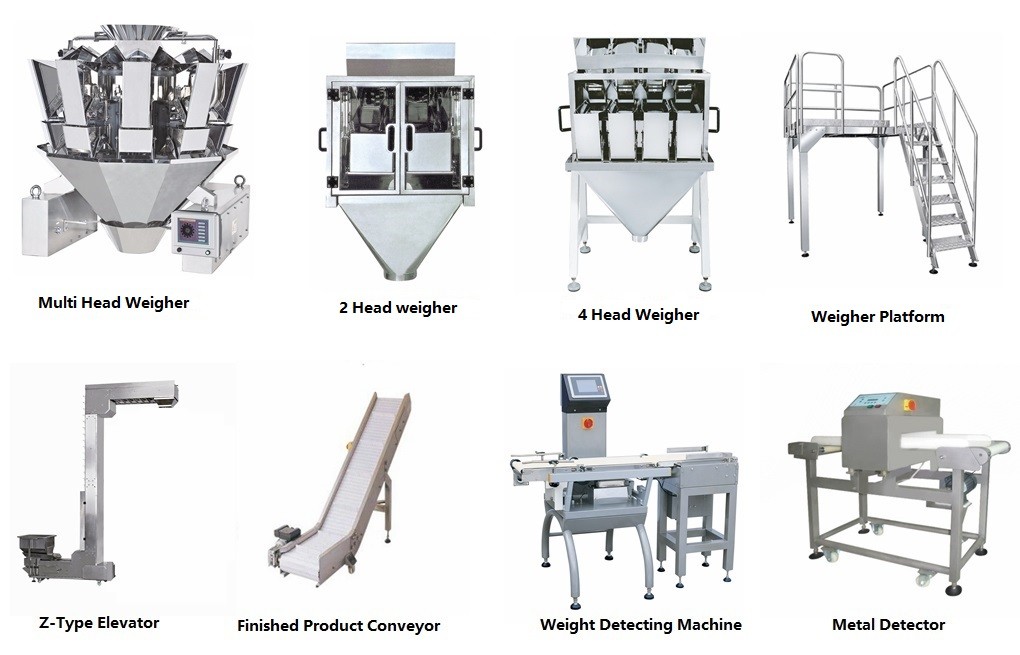

Optional Devices:
GQ-520T Random Accessories And Random Tools:
