Fully Automatic Splicing Machine (Rotary Type) — LPE-RFE50
The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a container is present, and its speed can be adjusted independently. In the event of a jam—caused by a deformed container or a foreign object obstructing the turntable—the system automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A simple one-touch reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

Product Details


1. The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a container is present, and its speed can be adjusted independently. In the event of a jam—caused by a deformed container or a foreign object obstructing the turntable—the system automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A simple one-touch reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

2. Featuring a patented turntable design, the machine allows for rapid mold changes in just one minute, effortlessly resolving the challenges customers face when switching between multiple container shapes and diameters.

3. Equipped with an integrated collection hopper, the system significantly reduces filling times and enhances production efficiency.

4. The material receiving station features a vibration function, effectively resolving the dispensing challenges associated with most granular materials.

5. Utilizing a world-renowned control system—the Siemens PLC from Germany—alongside German SICK sensor technology, the equipment guarantees highly efficient and stable operation.

6. Highly versatile, the machine accommodates containers of various specifications, shapes, and materials, thereby meeting diverse production requirements and significantly reducing operating costs for the user.

7. Maintenance costs are low; the equipment features a simple mechanical structure that is easy to operate and maintain. Its convenient serviceability minimizes production losses typically associated with downtime for repairs.

Product Parameters

1. Production Speed: 20–60 cans/minute (Adjustable; depends on can material, size, and the flow characteristics of the filling material)

2. Applicable Can Height: 50–200 mm (A wide height range may require additional molds)

3. Applicable Can Diameter: 35–130 mm

4. Air Consumption: 115 L/min (without pushing mechanism); 250 L/min (with 2 pushing mechanisms)

5. Operating Air Pressure: 0.6 MPa

6. Power Supply: Single-phase AC 220V, 50/60 Hz

7. Total Power: 0.6 kW

8. Net Weight: 230 kg (approx.) | Gross Weight: 300 kg (approx.)

9. Conveyor Belt Height: 850 mm

10. Main Exterior Material: #304 Stainless Steel

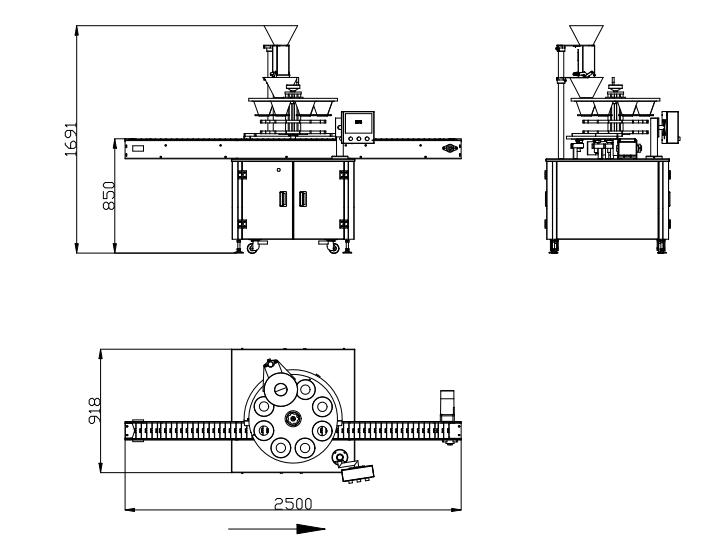

11. Equipment Dimensions: Length 2500 × Width 918 × Height 1691 mm (approx.)

12. Packing Crate Dimensions: Length 1260 × Width 1030 × Height 1750 mm


Product Configuration

配置标准配置,实际生产会有部分调整,按最终生产为准

序号
No.

配件名称
Part name

品牌
Brand

产地
Origin


1

程序控制器
PLC

西门子
SIEMENS

德国
Germany

PLC


2

触摸屏
Touch screen

西门子
SIEMENS

德国
Germany

Touch screen


3

光电传感器
Photoelectric sensor

西克
SICK

德国
Germany

Photoelectric sensor


4

接近传感器
Proximity detector

松下
PANASONIC

日本
Japan

Proximity detector


5

继电器
Relay

西门子
SIEMENS

德国
Germany

Relay


6

保险底座
Fuse base

施耐德
SCHNEIDER

法国
France

Fuse base


7

断路器
Breaker

施耐德
SCHNEIDER

法国
France

Breaker


8

按钮
Button

施耐德
SCHNEIDER

法国
France

Button


9

气动元件
Pneumatic component

亚德客
SYMTECH/AIRTAC

意大利/台湾
Italy/Taiwan

Pneumatic component


10

伺服电机
Servo motor

汇川
INOVANCE

中国
China

Servo motor


11

开关电源
Switch power

台达
DELTA

台湾
Taiwan

Switch power


12

输送带电机
Conveyor belt motor

台邦
VTV

台湾
Taiwan

Step motor


13

振动器
Vibrator

AMSi

中国
China

Vibrator
