Fully Automatic Vacuum Sealing Machine-LPE-NSP35
The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is present, and its speed can be adjusted independently. In the event of a jam—caused by a deformed can or a foreign object obstructing the turntable—the system automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A single-button reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

Product Details

1. The entire machine is servo-controlled, ensuring safer, more stable, and more intelligent operation. The turntable activates only when a can is present, and its speed can be adjusted independently. In the event of a jam—caused by a deformed can or a foreign object obstructing the turntable—the system automatically shuts down. This effectively protects the equipment from damage and safeguards the operator. A single-button reset clears the fault and resumes operation, significantly saving time and boosting production efficiency.

2. The seaming head features a one-touch lift-and-lower function, facilitating easy cleaning and maintenance—making it an ideal choice for food manufacturers.

3. The sealing process is completed simultaneously by two sets of double seaming rollers (totaling four rollers), ensuring a high degree of airtightness. Manufactured in Taiwan using Japanese-grade mold steel, these rollers boast high hardness and a high-gloss finish, guaranteeing seals that are flat, tight, and leak-proof. They offer an exceptionally long service life, capable of sealing up to 5 million cans.

4. The machine utilizes a world-renowned control system—the Siemens PLC from Germany—alongside German SICK sensor technology. This combination guarantees consistent can sealing integrity and filling accuracy throughout the production process, thereby ensuring both product quality and operational safety.

5. Highly versatile, the machine accommodates cans of various specifications and shapes to meet diverse production requirements, thereby significantly reducing operating costs for the user. Furthermore, the can itself remains stationary during the sealing process, enhancing safety and making the machine particularly suitable for handling fragile or liquid-based products.

6. Featuring a high degree of automation—including automatic lid dispensing and automatic sealing—the system dramatically boosts production efficiency and lowers operational costs for the business.

7. Maintenance costs are kept low thanks to the machine's simple mechanical structure, which ensures ease of operation and facilitates convenient repairs. This minimizes production losses typically associated with downtime required for maintenance.


Product Parameters

1. Number of Sealing Stations: 1

2. Number of Seaming Rollers: 4 (2 First-Operation Rollers, 2 Second-Operation Rollers)

3. Sealing Speed: 20–35 cans/minute (Adjustable; varies depending on can material, size, and contents)

4. Sealing Height: 20–200 mm (Additional costs apply for heights exceeding 80 mm)

5. Sealing Diameter: 30–100 mm (Diameters outside this range are considered non-standard and incur significantly higher costs)

6. Air Consumption: 85 L/minute

7. Power Supply: 3-Phase AC 380V, 50/60 Hz

8. Total Power: 3.65 kW

9. Net Weight: 330 kg (approx.) | Gross Weight: 400 kg (approx.)

10. Conveyor Belt Height: 850 mm

11. Main Exterior Material: 304 Stainless Steel

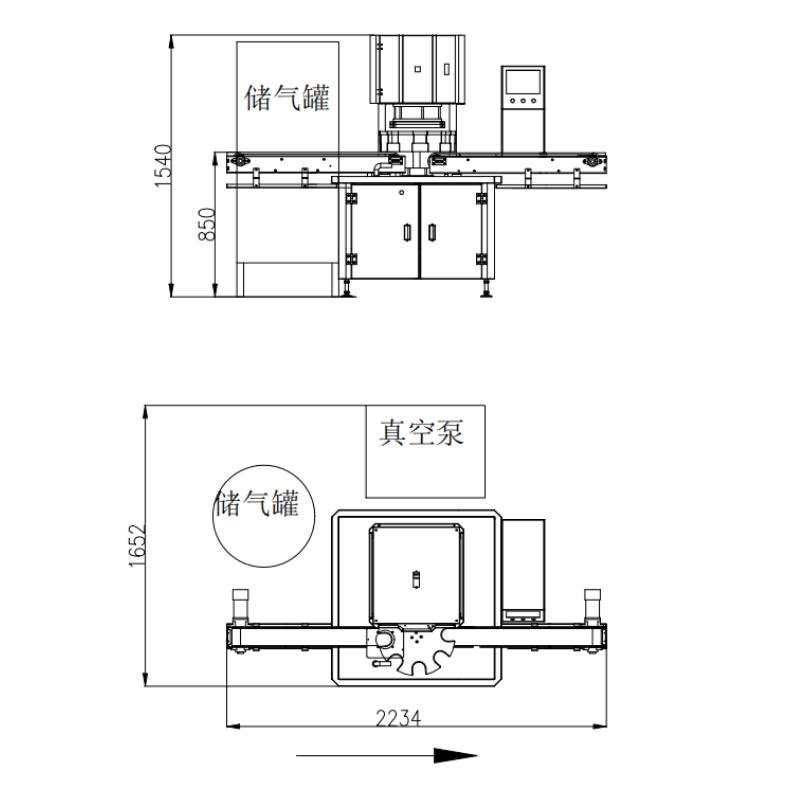

12. Equipment Dimensions: L 2234 × W 1652 × H 1540 mm (approx.)

13. Packing Crate Dimensions: L 1730 × W 1200 × H 1700 mm | L 780 × W 730 × H 1680 mm


Product Configuration

配置(标准配置,实际生产会有部分调整,按最终生产为准)

序号

No.

配件名称

Part name

品牌

Brand

产地

Origin



1

程序控制器

PLC

西门子

SIEMENS

德国

Germany

PLC


2

触摸屏

Touch screen

西门子

SIEMENS

德国

Germany

Touch screen


3

轴承

Bearings

NSK

日本

Japan

Bearings


4

光电传感器

Photoelectric sensor

西克

SICK

德国

Germany

Photoelectric sensor


5

接近传感器

Proximity detector

松下

PANASONIC

日本

Japan

Proximity detector


6

继电器

Relay

西门子

SIEMENS

德国

Germany

Relay


7

保险底座

Fuse base

施耐德

SCHNEIDER

法国

France

Fuse base


8

断路器

Breaker

施耐德

SCHNEIDER

法国

France

Breaker


9

按钮

Button

施耐德

SCHNEIDER

法国

France

Button


10

气动元件

Pneumatic component

亚德客

SYMTECH/AIRTAC

意大利/台湾

Italy/Taiwan

Pneumatic component


11

封口伺服电机

Servo motor

汇川

INOVANCE

中国

China

Servo motor


12

开关电源

Switch power

台达

DELTA

台湾

Taiwan

Switch power


13

输送带电机

Conveyor belt motor

台邦

VTV

台湾

Taiwan

Step motor


14

输送带电机变频器

Frenquency converter of conveyor belt motor

科肯

KEKEN

中国

China

Frenquency converter of conveyor belt motor


15

卷轮

Seaming roller

协建

HSIEH

台湾

Taiwan

Seaming roller


16

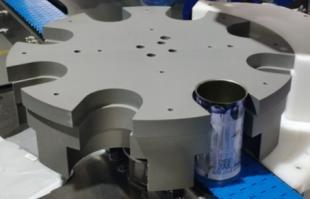

转盘Turntable

航空铝

利华包装
LPE

Turntable(1)


17

球阀

九木

JIUMU


中国

China

JIUMU


18

水环真空泵

淄博宏炎

中国

China


真空电机


19

磁性开关

亚德客

AIRTAC

台湾

Taiwan

磁性开关


20

接触器

施耐德

SCHNEIDER

法国

France

接触器(1)




Spares that recommend to buy

No

Spares

Unit

unit price

1

Seaming chunck

1piece

400-700RMBup to size

2

Seaming rollers

4pcs2first operation2second operation rollers

400RMB/PCS

3

Timing belt

2pcs

50RMB/PCS

4

Motor belt

1pcs

20RMB/PCS

5

POM chain

2 meters

55RMB/PCS

6

Spring of seaming head

2 pcs

5RMB/PCS

7

Lids separator

4pcs

30RMB/PCS

8

Flat bearing of seaming head

4pcs

50RMB/PCS

9

Magnetic valve

4pcs

80RMB/PCS

10

Front stopper

1pcs

75RMB/PCS

11

Tray cylinder

1pcs

200RMB/PCS

12

Lids feeding cylinder

1pcs

70RMB/PCS

13

Frenquency converter

1pcs

1350RMB/PCS
