Product Introduction

1. Servo control throughout the machine, adjustable and controllable torque, ensuring precise capping.

2. Simulates human hand parallel and precise cap gripping, preventing jamming, misalignment, and damage to bottle caps, resulting in smooth and accurate capping.

3. Quick mold change in one minute easily solves the problem of dealing with various cap and bottle sizes.

4. Adopts internationally renowned German Siemens PLC control system and German SICK sensor technology, ensuring stable operation and ultra-high precision capping during production. Capping accuracy reaches 99.99%, ensuring product quality and production safety.

5. Highly versatile, adaptable to bottles of different specifications, shapes, and materials to meet diverse production needs, significantly reducing operating costs for operators.

6. High degree of automation, automatic cap feeding and capping, greatly improving production efficiency and reducing operating costs for business owners.

7. Low maintenance costs; simple and easy-to-operate mechanical structure, low maintenance costs, and convenient repairs, reducing production losses due to downtime.

Product Parameters:

1. Cap Type: Pneumatic gripper cap feeding.

2. Cap Sorting Method: Lifting belt cap sorting, with interchangeable guide rails and bottle-holding cap feeding assembly for different cap types.

3. Cap Feeding Speed: 900~1500 bottles/hour

4. Capping Method: Servo-controlled torque-limited gripper-type capping.

5. Capping Speed: 900~1500 bottles/hour

6. Total Power: 1KW

7. Power Supply: AC220V 50/60Hz

8. Working Air Pressure: 0.5-0.6MPA

9. Air Consumption (Compressed Air): 130L/min

10. Applicable Range: Cap diameter 20-120mm, can/bottle height 30-250mm 11. Conveyor Belt Height: 850mm

12. Main Material of Equipment Exterior: 304# Stainless Steel

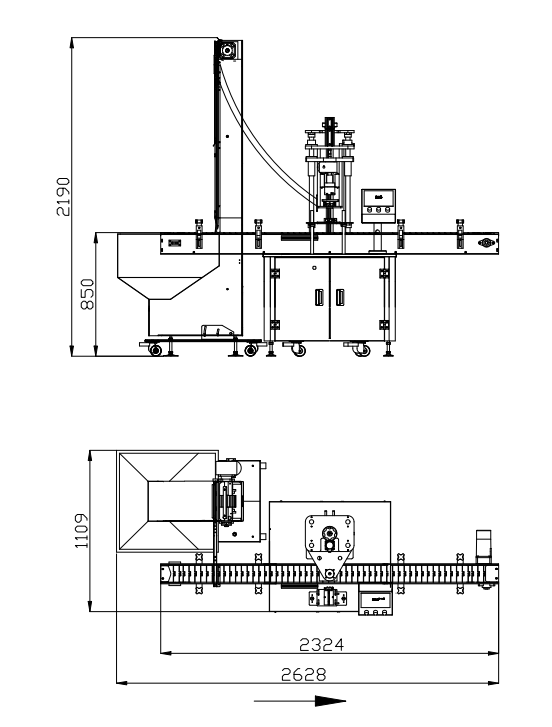

13. Equipment Dimensions: Length 2628 * Width 1109 * Height 2190mm (approx.)

14. Packing Crate Dimensions: Main Unit: Length 1210 * Width 960 * Height 1760; Lid Lifting Elevator: Length 2240 * Width 810 * Height 1140mm
