Whole set of technical parameters

1. Packing speed: about 20-45 packs/min, depending on the quality of packaging film and materials.

2. Packaging size: replace different film widths need to replace the shaper, the length is limited adjustable.

3. The form of bag-making: packaging materials with roll film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.

4. The whole set of power: about 6.0 kilowatts

5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packaging machine production has been equipped with a good source of gas.

6. The overall height of the package: about 4.1 meters.

Each part of the machine

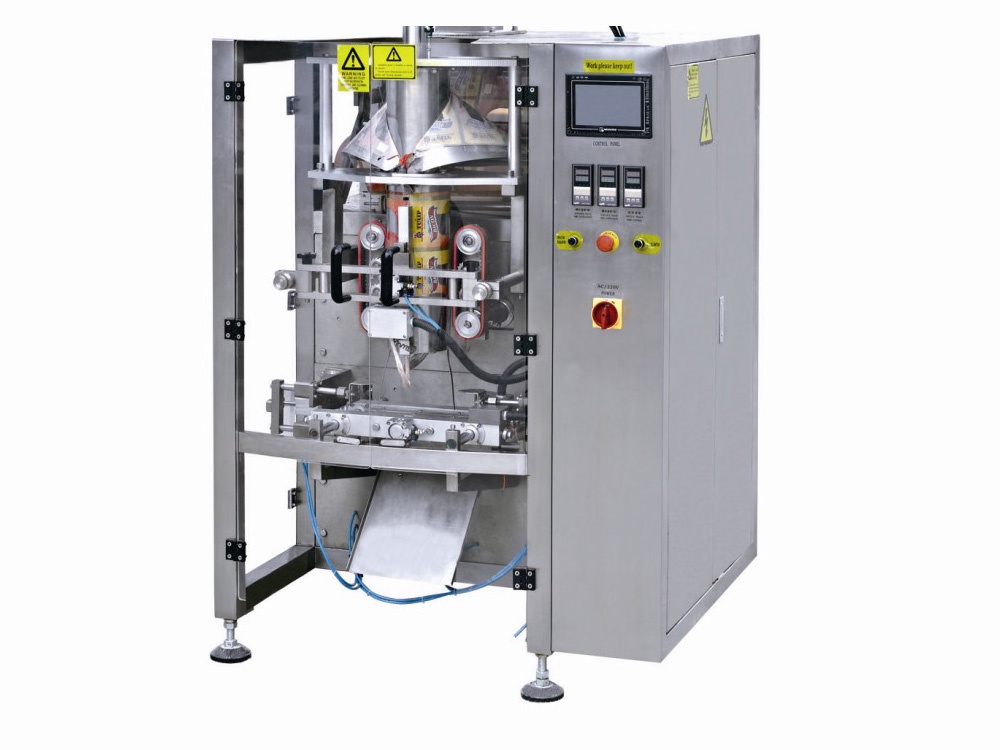

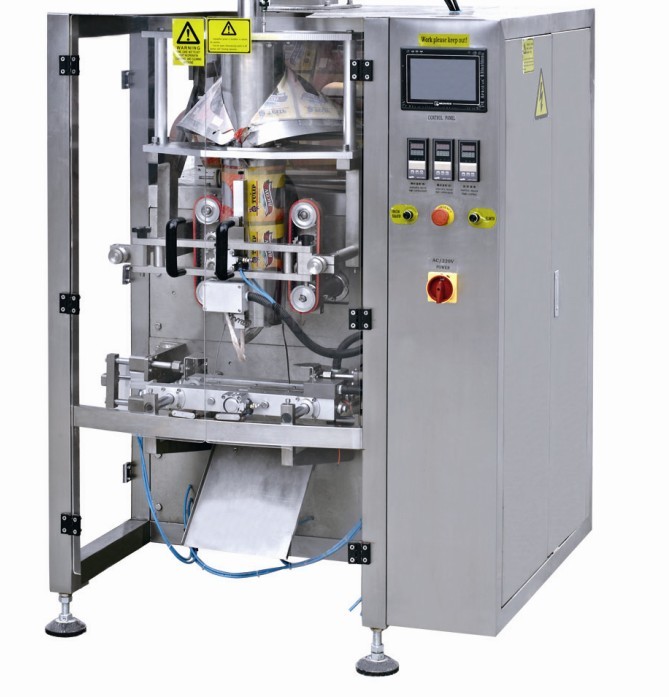

1. 720T Automatic hot edge packaging machine

* Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.

* High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.

* Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.

* Including automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.

* The machine can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, and finished product output by matching with the metering device.

Technical Parameters:

The machine configurations are as follows:
