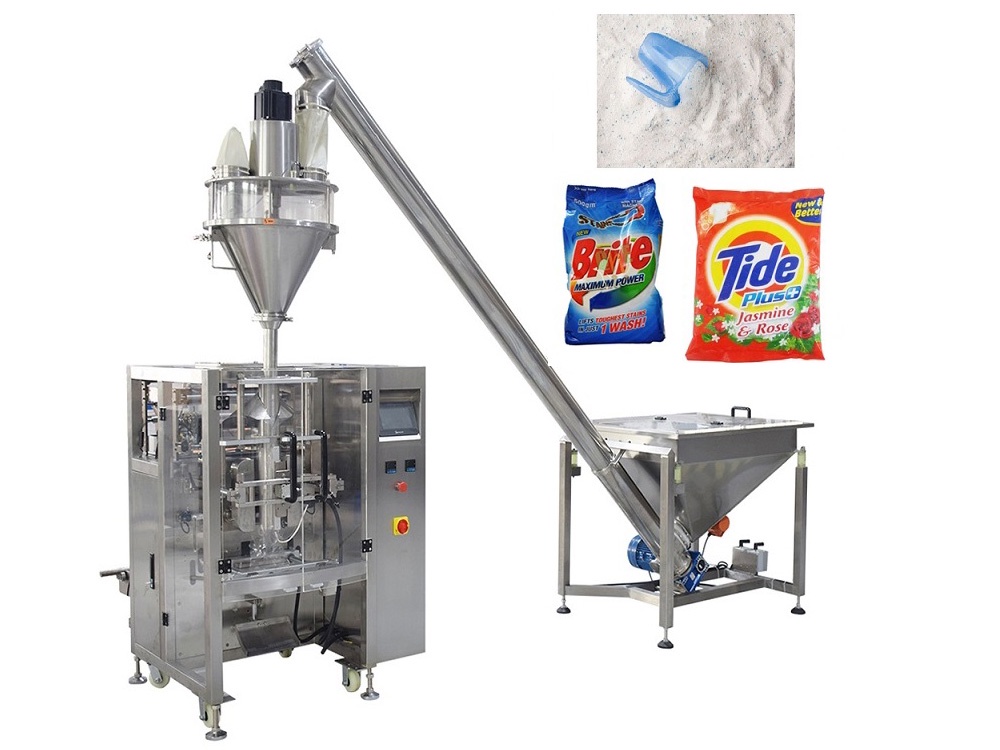

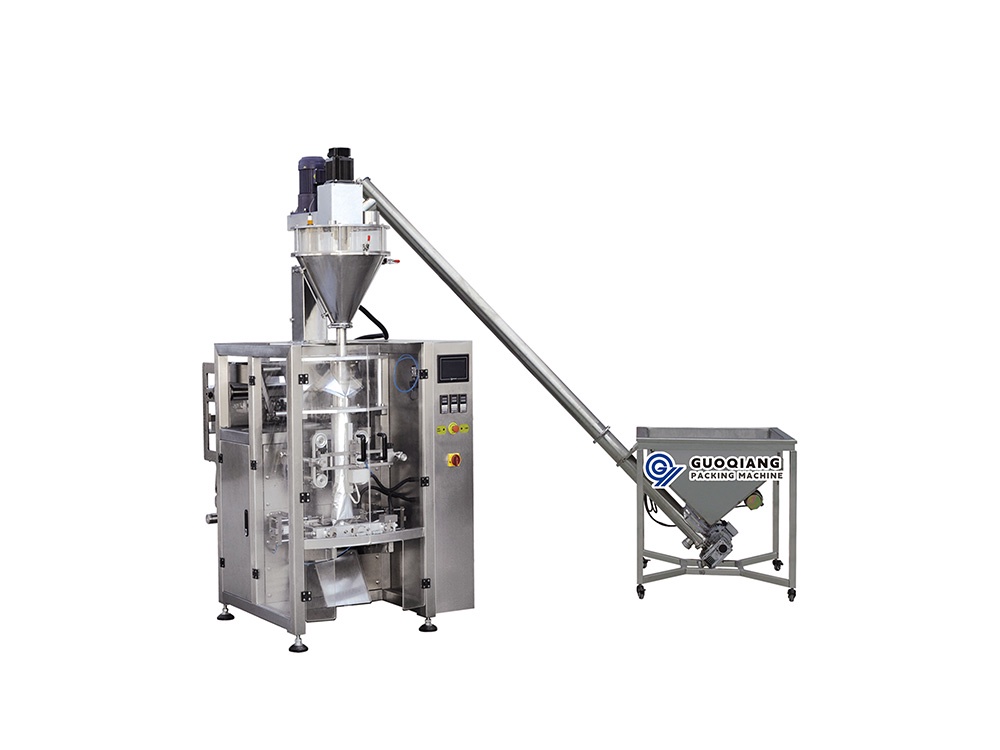

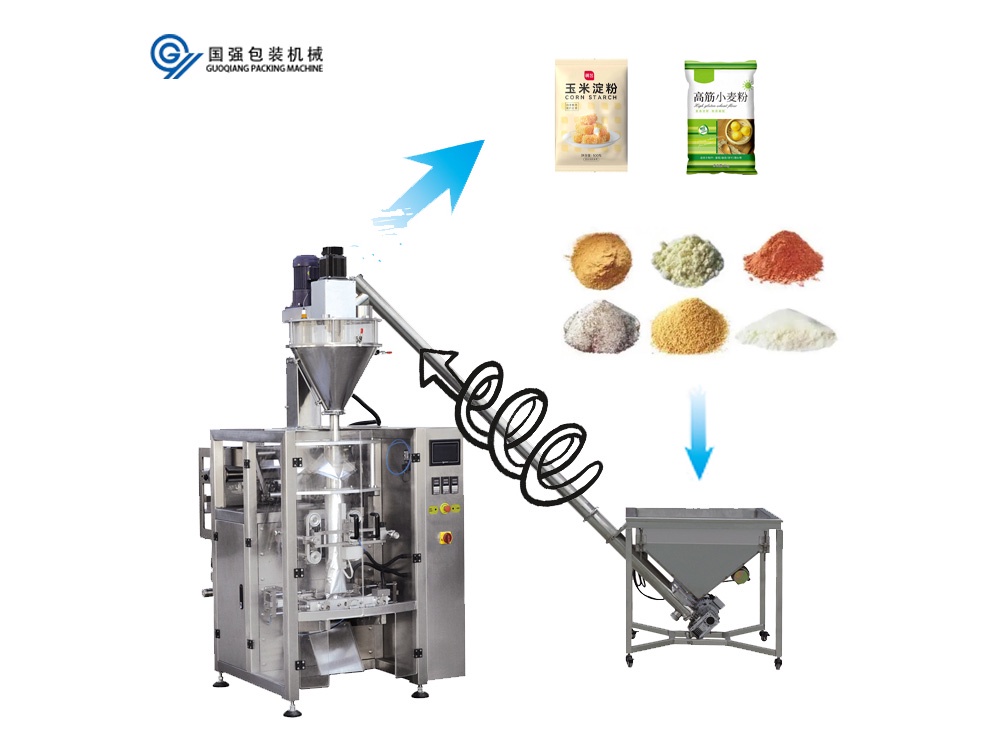

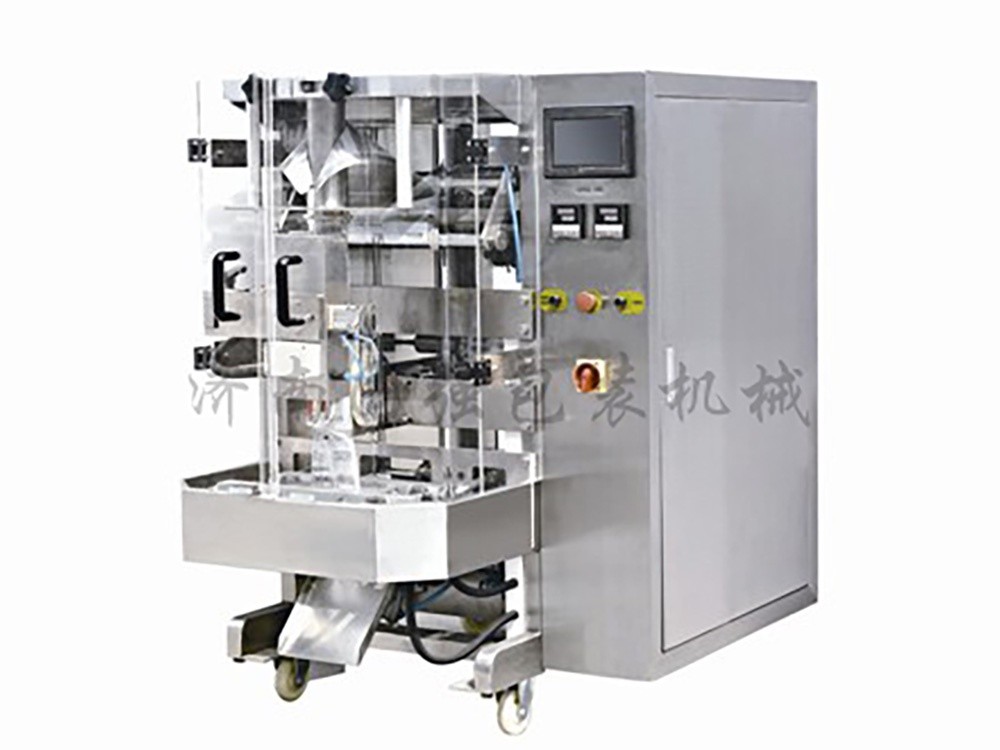

The whole set of technical parameters

1. Packing speed: about 20-60 bags/min, depending on the quality of packing film and materials.

2. Packing size: bag width 60-200mm, length 50-300mm. Replace different film widths need to replace the formers, the length is limited adjustable.

3. The form of bag-making: packing materials with roll film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.

4. The whole set of power: about 3.8 kilowatts

5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packing machine production has been equipped with a good source of gas.

6. The overall height of the package: about 2.5 meters.

Technical Parameters:

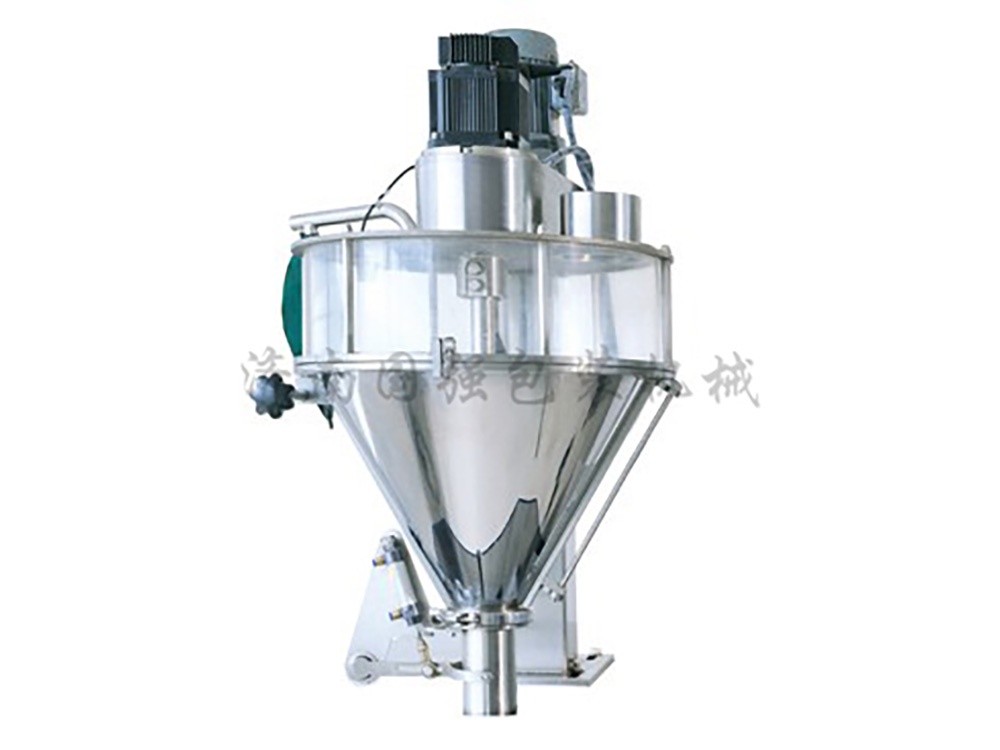

Spiral metering machine

1. Main performance and characteristics of spiral metering machine

1). Simple structure, reliable operation, simple and convenient maintenance.

2). The screw machine adopts rotary screw feeding, servo coding, microcomputer control technology is the biggest technical feature of the machine. Set coding, control in one, with sensitive action, low noise, stable, reliable, fast metering speed, high precision, etc. In addition, it also adopts a compound open type material box, easy to clean.

2. Spiral metering machine technical parameters

1). Measuring method: Spiral rotary filling type

2). Packing weight: 10-2000g (change spiral attachment)

3). Weighing range: 1-2000g (resolution 1)

4). Packing accuracy

    Packing weight: ≤ 100g Deviation ≤ 0.5-1g

    Packing weight: 100-1000g Deviation ≤ 0.5%-1%

    Packing weight: >1000g deviation ≤ 0.25%-0.5%

5). Packing speed: 10-50 bags/min

6). Power supply, power: Three-phase 380V/ single-phase 220V /1.5kw 50-60HZ

7). Weight of the whole machine: 80Kg

8). Tank volume: 50L

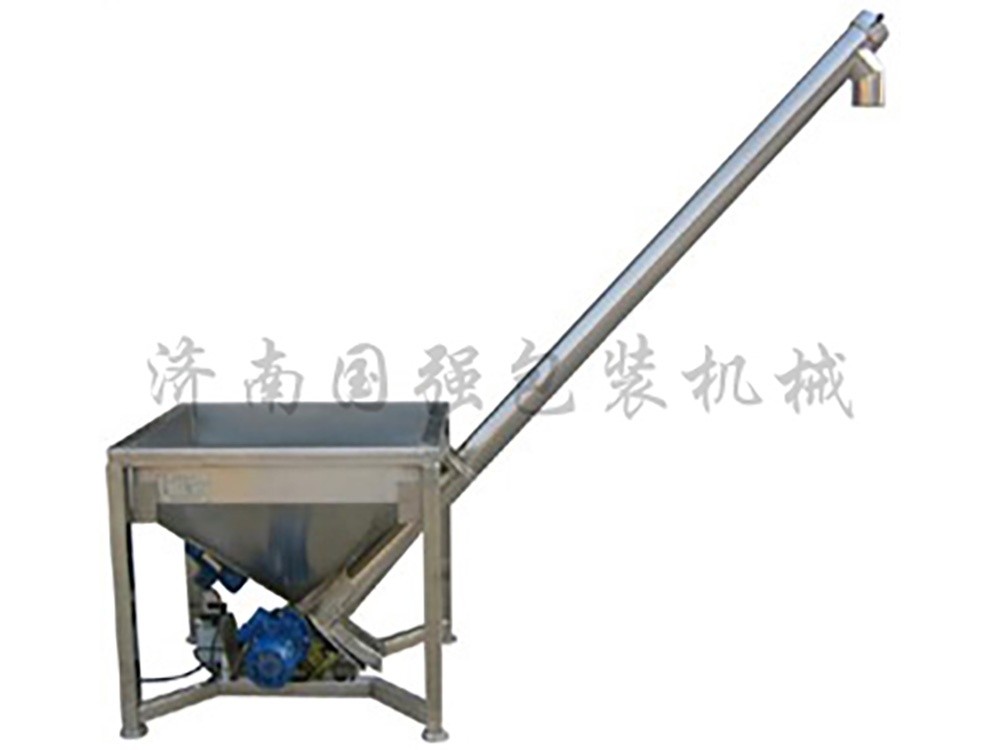

Spiral feeding machine

1. Product introduction:

The machine adopts screw-type feeding, and the hopper can be vibrated.

It is suitable for conveying all kinds of powder and small granular materials.

2. Technical parameters：

1). Lifting height (standard): 2.35m

2). Lifting capacity: 3 cubic meters/hour

3). Specifications: according to customer requirements

4). Material: carbon steel, stainless steel.

5). Weight: 100Kg

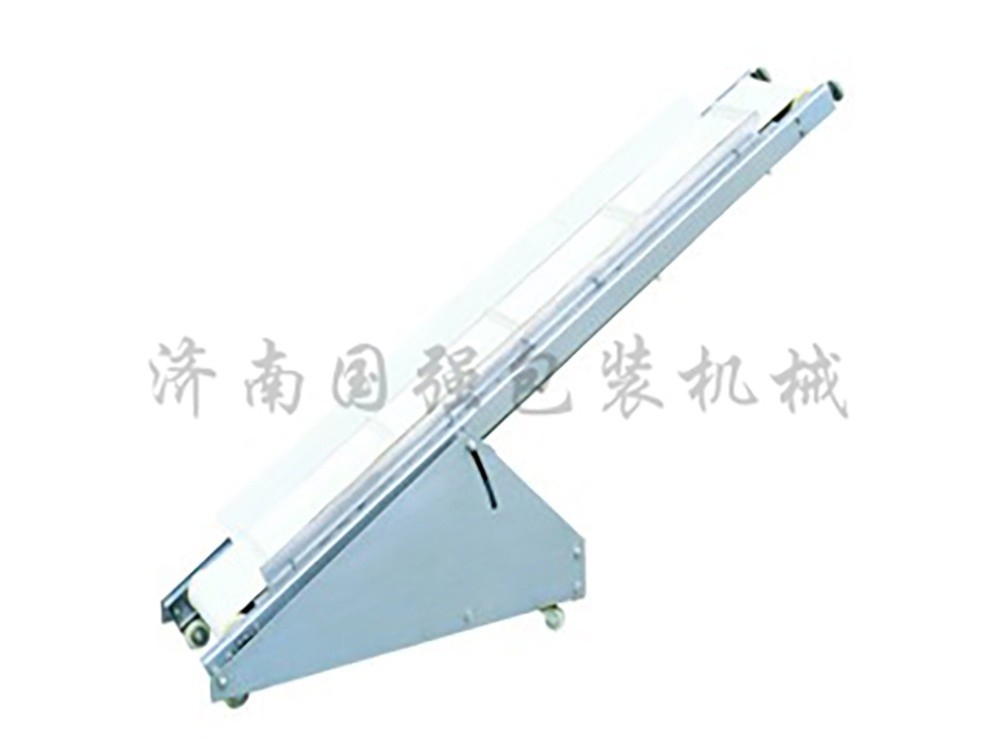

 Finished product conveyor

Function: Automatically pack the finished bags to the post-packing testing equipment or packing platform

Technical parameters：

Conveying speed: 30m/min

External dimensions: 2110×340×500mm

Voltage: 220V/45W

Weight: 30Kg
